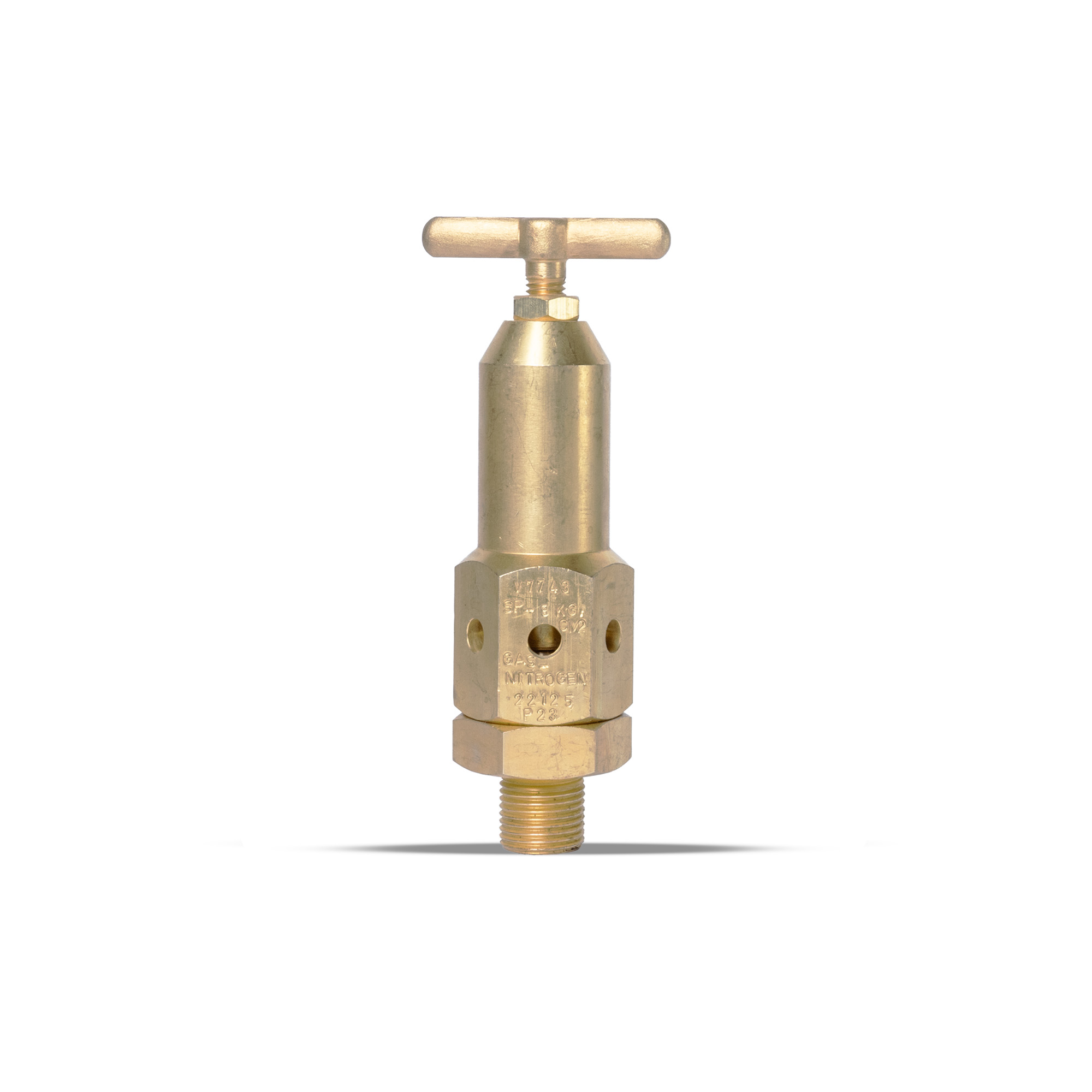

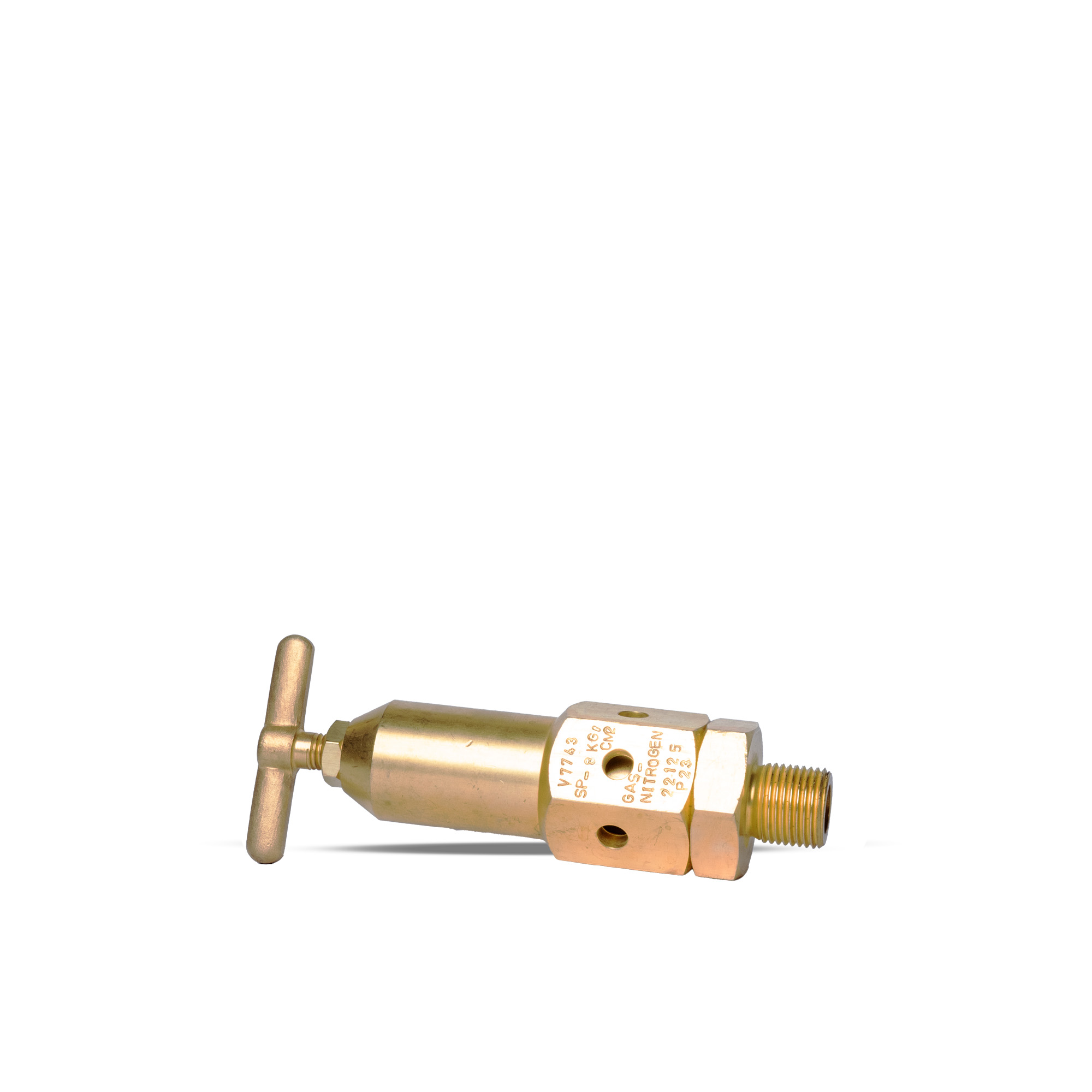

High Pressure Safety Relief Valve V7743 1/2″

Safety Relief Valves play a crucial role in gas pressure reducing systems for LPG and natural gas. These valves are designed to protect equipment, pipelines, and systems from overpressure conditions that could lead to potentially dangerous situations.
> Overpressure Protection: Safety Relief Valves are employed in gas pressure reducing systems to safeguard against overpressure situations. Overpressure can occur due to various factors, including regulator malfunction, thermal expansion, equipment failure, or other unforeseen circumstances. When the downstream pressure exceeds safe limits, the safety relief valve activates to release the excess pressure.
> Creep Pressure Mitigation: Creep pressure refers to a gradual increase in pressure downstream of the regulator, which can occur due to small leaks or weeping in the regulator. This phenomenon can be especially problematic in gas systems, as it may result in downstream pressures reaching dangerous levels over time. Safety Relief Valves are designed to handle this creep pressure by opening and venting the excess gas to maintain safe downstream pressure.
> Emergency Pressure Relief: Safety Relief Valves serve as a critical emergency measure. In situations where the primary pressure regulator fails or becomes compromised, the safety relief valve acts as a last line of defense, preventing catastrophic overpressure events that could lead to equipment damage, gas leaks, or explosions.
> Maintains Consistent Pressure: By venting excess pressure when needed, these valves help maintain a stable and safe downstream pressure, ensuring the gas supply remains within acceptable limits.
